IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

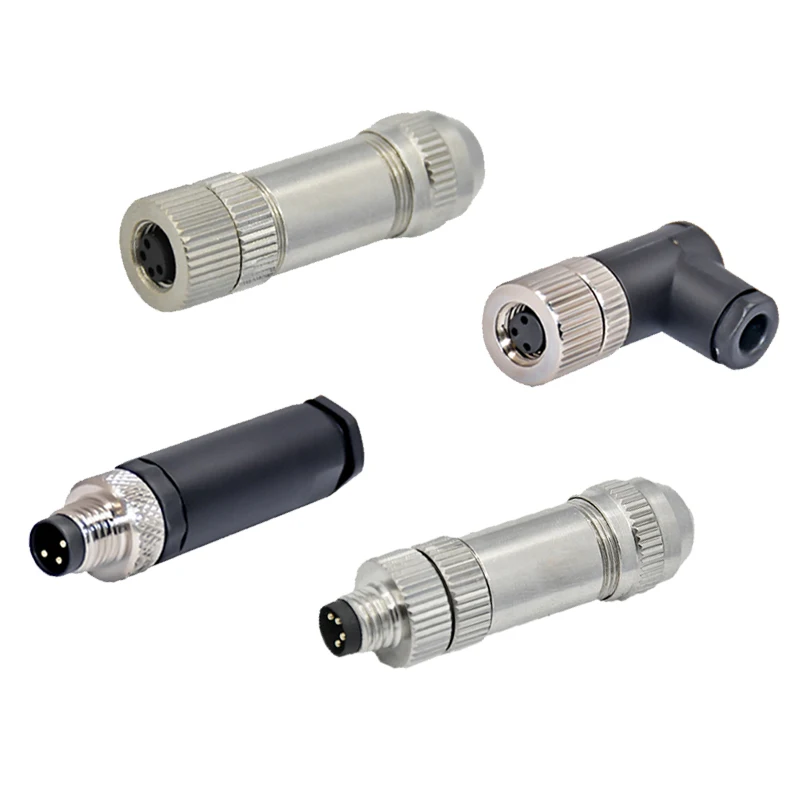

IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage

Model Number : M8-Assembly

Brand Name : Rigoal

Place of Origin : Guangdong, China

MOQ : 10

Price : $0.99-2.10

Gender : male and female

Connector type : Male female plug

Code : A/B/D coded

Contact material : CuZn, TPU

Rated Voltage : 30V for 5/6/8 pin, 60V for 3/4 pin

Rated Current : 3/4 pin:4A, 5pin:3A, 6pin:2A, 8pin:1.5A

Orientation : Straight / Right Angle

Protection level : IP67/IP68 Waterproof

Temperature Range : -25℃~85 ℃

Pin configurations : 3, 4, 5, 6, 8 positions

Screw locking : M8*1.0

Connector Body : PA66+GF

Shell Material : Plastic(TPU)/Metal(CuZn)

Contact Resistance : ≤10mΩ

Mechanical Operation : >500 mating cycles

Contact Now

Product Description
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage

Product Features:
- M8 circular connector with M8*1.0 screw locking
- Easy quick connect and disconnect coupling; - Pin configurations: 3, 4, 5, 6, 8, positions - A, B, D coding available - Shield and un-shield Version Available with metal or plastic housing - Meets IP67/IP68 waterproof requirements - Temperature Range: -25°C ~ + 85°C - PG7 type for 3~6mm cable
General Information
Product name
Waterproof M8 assembly Connector
Gender
Male and Female
Pin
3/4/5/6/8 pin
Orientation
Straight/Right Angle/Y T type
Connector Body
PA66+GF
Contact Material
Phosphorus copper with gold plated
Shell Material
Plastic(TPU)/Metal(CuZn)
Screw/Nut Material
Brass with nickel plated
Cable Jacket
PVC/PUR
Rated Voltage
30V for 5/6/8 pin
60V for 3/4 pin
Rated Current
1.5A/2A/3A/4A
Certificate
ISO9001,CE,IP68,ROHS
Protection level
IP67/IP68 waterproof
Temperature Range
-25℃~85 ℃
Contact Resistance
≤10mΩ
Mechanical Operation
>500 mating cycles
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
Packing & Delivery
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
Packaging:
1.Our standard packaging: * About 50pcs put in a plastic box
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.

Shipping:
According to customer request, we can choose different convenient shipping way.
Company Profile
About US
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to some world-famous brands.
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First,Quality First.
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
IP67/IP68 Waterproof M8 Circular Connector with 3/4/5/6/8 Pin Configuration and 30V/60V Rated Voltage
FAQ
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A:ISO 9001, ISO14001, TUV, UL, RoHS, REACH etc.

Q3: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q4: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Pleasecontact us for details.

Q5:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5, M8, M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

Q6: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
